When using the stack bundle, will the icons resize when I only use 2 tools per stack or is the icon just two sizes, large and small?
I am making this 2x2 stack but the icons are small that you can barely make it out
I believe this is a limitation in the RevitAPI, it only has two sizes for buttons, so regardless of 2 or 3 items in a stack it will use the same small icon size of 16x16.
It can be “hacked” to display 24x24, but not officially supported in API.
https://forums.autodesk.com/t5/revit-api-forum/24x24-stackeditems/td-p/9168470
Thanks for sharing. At least I know now.
on a second note, i do notice that in a splitbutton it will show them at a larger size. Not sure if that could be a hack for pyrevit to explore.
fyi, for those curious, i was able to implement this using a startup.py at the root of the extension. here is my example that worked (currently had two pulldowns in stack). I know it is not officially supported by the API so if it ever gets removed by Autodesk, the startup.py can be deleted.

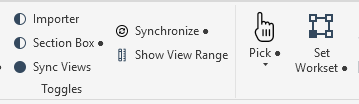

Before and After
and use item.ShowText = False/True to show/hide the button names
# -*- coding: utf-8 -*-
import clr
clr.AddReference("AdWindows")
from Autodesk.Windows import ComponentManager, RibbonItemSize
from pyrevit import HOST_APP
# Target ribbon location:
# NXGN[Core].tab > Drawing Set.panel > SheetView.stack
# The actual runtime ribbon items we want to resize are the child controls
# inside that stack: "Sheets" and "Views".
TARGET_TAB_NAME = "NXGN[Core]"
TARGET_PANEL_NAME = "Drawing Set"
TARGET_ITEM_NAMES = ["Sheets", "Views"]
_done = False
_attempts = 0
# startup.py runs very early during pyRevit startup.
# In testing, this code was executing before the pyrevit extensions
# were fully populated, so a direct one-shot call from startup.py did not work.
#
# Using the Revit Idling event delays execution until the UI is far enough along
# that the target ribbon items actually exist.
#
# At the moment, one Idling pass has been enough, so MAX_ATTEMPTS is set to 1.
# If this ever becomes inconsistent on another machine or after a future update,
# this value can be increased.
MAX_ATTEMPTS = 1
def safe_str(x):
try:
return str(x)
except:
try:
return unicode(x)
except:
return ""
def walk_items(items):
# This recursive walker allows the script to search through all nested children
# under the target panel until it finds the specific controls to modify.
# So far this has worked for .stack bundle.
if not items:
return
for item in items:
yield item
try:
for child in walk_items(item.Items):
yield child
except:
pass
try:
src = item.Source
if src:
for child in walk_items(src.Items):
yield child
except:
pass
def get_item_values(item):
# The Autodesk ribbon objects can expose their identifying info in slightly
# different places depending on the control type.
#
# To make matching more reliable, gather several possible identifying properties
# from both the ribbon item itself and its Source object.
vals = []
for prop in ["Text", "Title", "Name", "AutomationName", "Id"]:
try:
v = getattr(item, prop)
if v:
vals.append(safe_str(v))
except:
pass
try:
src = item.Source
if src:
for prop in ["Text", "Title", "Name", "AutomationName", "Id"]:
try:
v = getattr(src, prop)
if v:
vals.append(safe_str(v))
except:
pass
except:
pass
return vals
def find_panel():
# Find the runtime ribbon panel by tab title and panel title.
# This is more reliable than trying to use the filesystem folder path directly,
# since the actual UI must be found from the live Autodesk ribbon.
ribbon = ComponentManager.Ribbon
if ribbon is None:
return None
for tab in ribbon.Tabs:
if safe_str(tab.Title) != TARGET_TAB_NAME:
continue
for panel in tab.Panels:
try:
if safe_str(panel.Source.Title) == TARGET_PANEL_NAME:
return panel
except:
pass
return None
def apply_hack():
# This is the actual ribbon hack:
# - find the target panel in the live ribbon
# - locate the specific stacked child controls by name
# - force them to display as Large instead of the normal small stacked size
#
# This is needed because standard stacked buttons in pyRevit/Revit display small,
# and there is no normal pyRevit bundle setting to make those stacked items larger.
panel = find_panel()
if panel is None:
return False
try:
items = panel.Source.Items
except:
return False
found_any = False
for item in walk_items(items):
vals = get_item_values(item)
for target in TARGET_ITEM_NAMES:
if target in vals:
try:
# Force the stacked ribbon child item to use the larger display size.
item.Size = RibbonItemSize.Large
except:
pass
try:
item.ShowText = False # Hide or show button names
except:
pass
found_any = True
break
return found_any
def stop():
# Always unsubscribe when finished so the Idling event does not keep firing.
try:
HOST_APP.uiapp.Idling -= on_idling
except:
pass
def on_idling(sender, args):
global _done, _attempts
if _done:
# Safety check in case the handler fires again after the script is done.
stop()
return
_attempts += 1
try:
# Try once the UI is idle.
# This is the key part that makes the hack work at startup.
if apply_hack():
_done = True
stop()
return
except:
_done = True
stop()
return
# If the target items are still not available, stop after the allowed number
# of attempts so the event does not remain subscribed indefinitely.
if _attempts >= MAX_ATTEMPTS:
_done = True
stop()
# Cleanup first in case the script gets reloaded and an old handler is still attached.
try:
stop()
except:
pass
# Attach the deferred startup handler.
# This allows the ribbon hack to run after pyRevit has had time to build the tab/panel/items.
try:
HOST_APP.uiapp.Idling += on_idling
except:
pass
