Pyrevit context menu

Revit API
1

Hi everyone,

I’m trying to create a context menu (new in Revit 2025). The contextmenu itself appears, but I can’t seem to add an Item to it. It seems that the BuildContextMenu function just doesn’t run.

#! python 2
# -*- coding: utf-8 -*-

from pyrevit import DB, forms
from pyrevit.revit import HOST_APP
from Autodesk.Revit.UI import IExternalCommand, IContextMenuCreator, ContextMenu, CommandMenuItem

class ContextMenuHandler(IContextMenuCreator):
    def BuildContextMenu(self, context_menu):
        # Create a new menu item
        menu_item = CommandMenuItem("Custom Action", "CustomCommand", __name__)
        menu_item.SetAvailabilityClassName("Autodesk.Revit.DB.View")
        forms.alert("About to add button to context menu")
        context_menu.AddItem(menu_item)

class CustomCommand(IExternalCommand):
    def Execute(self, command_data, message, elements):
        forms.alert("Custom context menu action executed!")
        return DB.Result.Succeeded

# Register context menu for views in the Project Browser
app = __revit__
app.RegisterContextMenu("MyMenu", ContextMenuHandler())

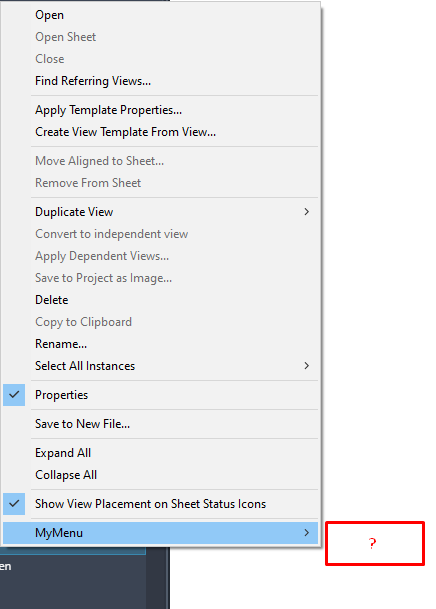

This is the result. I get the menu, but no item:

No ContextMenuItem
No ContextMenuItem436×609 10.6 KB

Anyone got any experience or tips?

2

0 experience but curious nevertheless.

If I understand correctly you have to

  • first register / set a ContextMenu (I think Revit does this for you)
  • to which you add CommandMenuItems

right?

  • Are all alerts triggered?
  • if you temp. disable menu_item.SetAvailabilityClassName("Autodesk.Revit.DB.View"), does it work?
3

I disabled the ‘setavailability’ and it doesn’t change anything.

I don’t get any alerts.

  • The one in the customcommand makes sense, because that would only run once I run a command (the one that doesn’t appear).
  • The other one however is more tricky. A contextmenu does appear (which makes me believe the IContextMenuCreator runs) but no item is added to the contextmenu (which makes me believe the ‘buildcontextmenu’ method doesn’t run).
4

Are you running this as button in Pyrevit?

I did and get the same result. However I think that this needs to be loaded earlier.

from pyrevit import forms
from Autodesk.Revit.UI import IContextMenuCreator, CommandMenuItem

class CustomContextMenu(IContextMenuCreator):
    def BuildContextMenu(self, context_menu):
        forms.alert("BuildContextMenu triggered!")  # Debugging

        if context_menu is None:
            forms.alert("Error: context_menu is None!")
            return

        # Debugging: Show existing menu items
        existing_items = [item.Title for item in context_menu.GetItems()]
        forms.alert("Existing Menu Items: " + ", ".join(existing_items))

        # Create a new menu item and add it to the context menu
        menu_item = CommandMenuItem("Test Menu Item", "TestCommand", __name__)
        context_menu.AddItem(menu_item)

        forms.alert("Menu item 'Test Menu Item' added!")



# Register the context menu in Revit
app = __revit__
try:
    app.RegisterContextMenu("contextmenu", CustomContextMenu())
    forms.alert("Has RegisterContextMenu: " + str(hasattr(app, "RegisterContextMenu")))
    forms.alert("Context menu 'contextmenu' registered successfully!")
except Exception as e:
    forms.alert("Failed to register context menu: {}".format(str(e)))
5

Yeah, that’s what I found somewhere aswell, but running it as a hook on app-init just returns an error that the app has no method registercontextmenu (which is weird, right?)

6

hmmm interesting.

app = __revit__ does have it.

Using

from pyrevit import forms, HOST_APP
HOST_APP.app

does not

I haven’t tried it hooking it into appinit. Might try that today (in between deadlines)

7

Okay halfway there.

The app-init doesnt work (I think because at the time it runs, there isn’t any UIapp yet?)
But a startup script does work.
Using my original script in a startup file (in the main folder of a pyrevit extension) works to create the button. So the BuildContextMenu function runs… but the button itself doesn’t yet execute :frowning:
