Pyrevit 6.4.0 release

Collective
1

Pyrevit 6.4.0 release

Thanks to @Wurschdhaud, @tay0thman, @dnenov, @thumDer, @Denver-22, @OnePowerUser88, @vinnividivicci, @sweco-beb283, @jchristel, @924312, @jmcouffin, @thanhtranarch for the support, issue management, improvements and fixes.

Installers

pyRevit

CLI

Following installers are available at bottom of the page:

  • pyRevit CLI Admin EXE
  • pyRevit CLI Admin MSI

Highlights

  • Match History Clipboard: Dockable pane storing up to 50 parameter name/value pairs with regex search, three load sources (element picker, view filters, eyedropper), three paste modes, category filtering — plus color value pick improvements and richer filter visualization. (#3185, #3197, #3206, #3280)
  • Pick Elements by Parameter Value: New selection tool — pick a reference element, choose parameters, and rectangle-select matching elements; shift-click requires all values to match. (#3200)
  • Keynote Manager overhaul: Modeless window, unified tree with drag-and-drop, text case conversion menu, debounced search, and ADC compatibility fix. (#3136)
  • View Range Editor: Warns when view range is template-driven; edits apply directly to the view template. (#3155, #3192)
  • Rocket Mode: New rocket_mode config option skips icon pre-loading for faster startup. (#3121)
  • Revit 2027 support: Addin manifest path fix, updated hosts list, and ADC v2027 compatibility with three-tier filesystem fallback for .NET 8. (#3277, #3266)
  • C# Loader performance: Loader now matches legacy IronPython load times — config and metadata caching, reduced per-file I/O, and icon pre-loading removed from the hot path. (#3268, #3270)
  • C# Loader reliability: Multi-pass loading restored, digit-prefixed class name fix, duplicate class deduplication, version filtering, layout allowlist, F1 help parity, and WndProc crash fix. (#3188, #3179, #3111, #3134, #3281)
  • WPFPanel parity: _WPFMixin shared by WPFWindow and WPFPanel; panels now support load_xaml() with locale and resource dictionaries. (#3177, #3146)
  • IFC export helper: ifc.py extended with config loader, export-options builder, and single-call IFCExporter. (#3147)
  • Output window: Ctrl+C and Ctrl+A keyboard shortcuts in ScriptConsole; fixed pyRevit/IronPython version showing “Unknown” on startup. (#3258, #3260, #3262)
  • UpdaterListener: Now triggers on element addition and deletion, not just modification. (#3139)
  • Logging level fix: pyRevit logging enum correctly translated to Python scale — no more unwanted console output on startup. (#3207)

Changes by Folder / Tool

extensions/pyRevitTools.extension

Match, Pick, Selection, ViewRange, Keynote, SectionBox, ColorSplasher, ReNumber, Measure

  • Match History Clipboard: Persistent dockable pane with clipboard history, regex search, element/filter/eyedropper load sources, three paste modes, category awareness; companion Match Value Picker tool; shared lib/match/ library eliminating duplication. Color value pick now stores ElementId in a unified format; color helpers added to filter_utils for better filter detection and warning bar color control. (#3185, #3197, #3206, #3280)
  • Pick Elements by Parameter Value: Rectangle-based selection filter matching parameter values from a reference element; shift-click mode for multi-parameter matching; ParamDef extended with value badge and tooltip fixes. (#3200)

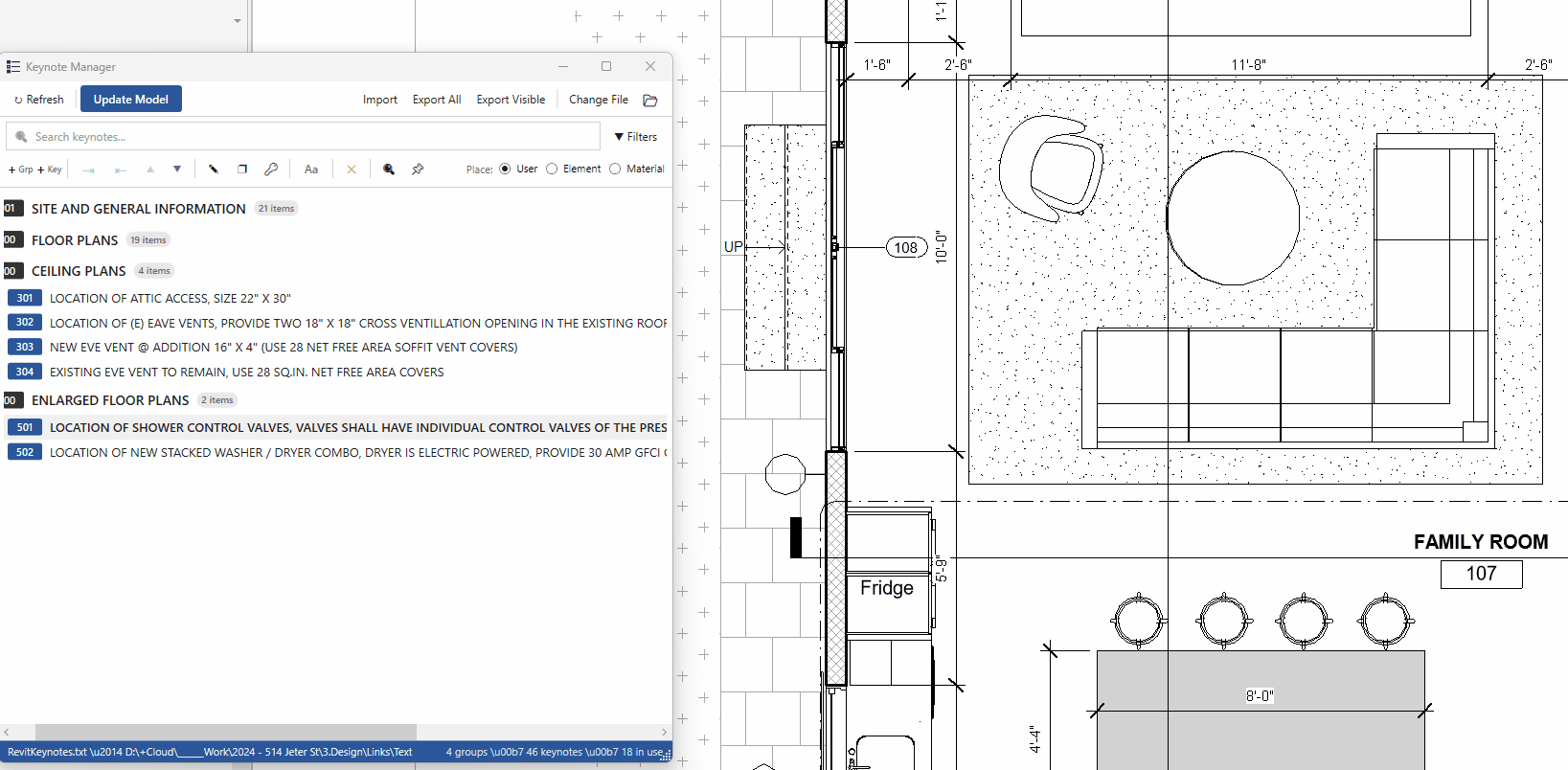

  • Keynote Manager: Modeless window architecture, unified hierarchical tree with drag-and-drop, text formatting menu (UPPER/lower/Title/Sentence), debounced search, UUID-based temp keys, null-safety, ADC ReadOnlyList monkey-patch. (#3136)
  • View Range Editor: Template-driven warning dialog before editing; edits applied to the view template directly; correct level ID handling for templates vs views. (#3155, #3192)
  • Section Box Navigator: Store set values across doc switching; levels-at-0 fix; additional bugfixes for document switching (#3145, #3130, #3261)
  • Temp View mode: Warning displayed when the view phase is not changeable. (#3274)
  • ReNumber: Shift+Click duplicate handling; restore non-integer support; switch to EXEC_PARAMS.config_mode. (#3127, #3120, #3125)
  • 3D Measure: Improvement pass. (#3124)
  • Convert CAD Import: Robustness improvements for FreeForm/DirectShape conversion. (#3126)
  • ColorSplasher / Isolate: Visually distinct color generator added to lib. (#3165)
  • ViewRange tool: Prevent duplicate windows, close crash fix, invalid value validation, DirectContext3D race condition fix, engine config correction. (#3240)
  • Copy Sheets: Preserve view title position and extent when copying sheets. (#3186)
  • ws4links: Script update. (#3143)

extensions/pyRevitCore.extension

Extensions, Settings

  • Settings window: Section headers, separators, and slider control added. (#3132)
  • Load Beta Tools: Fix setting + HelpUrl support improvement. (#3116)

extensions/pyRevitDevTools.extension

  • Developer Sample Panel: Full-featured WPF pane example with inline docs, XAML, and locale resource dictionaries. (#3177)
  • IFC export test script: Folder/config picker and output panel logging. (#3147)

extensions/extensions.json

  • T3LabLite extension added. (#3208)

pyrevitlib/pyrevit/forms

  • _WPFMixin refactor: Shared WPF behavior (resources, locale, UI helpers, dispatcher) extracted; WPFPanel brought to feature parity with WPFWindow via load_xaml(); resource setup ordering fixed. (#3177, #3146)
  • StaticResource crash fix in forms loader. (#3123)
  • CPython compat fix. (#3115)
  • select_parameters: Enriched with current value display and richer metadata; ParamDef extended; ParameterItemStyle.xaml updated with value badge. (#3200)
  • Locale-specific copied view detection fix. (#3175)

pyrevitlib/pyrevit/revit

  • query.py: get_name() updated with worksets support. (#3187)
  • events.py: UpdaterListener now registers element addition and deletion triggers. (#3139)

pyrevitlib/pyrevit — Lib Utilities

  • ifc.py: Extended with load_config(), build_export_options() (decimal-separator workaround), and IFCExporter class. (#3147)
  • Distinct color generator: Greedy max-distance RGB algorithm, IronPython 2.7 compatible, deterministic seed support. (#3165)
  • elements_bounding_box: Optional elements argument for get_value_range. (#3128)
  • Mesh: Optional color override for Mesh.from_solid. (#3169)

pyrevitlib/pyrevit/routes

  • Safe JSON serializer: Unicode-safe fallback for IronPython 2.7; handles NaN/infinity as null; float edge cases. (#3161)
  • Content-Length fix: Consistent byte encoding and single accurate header, fixing issues with Routes in localized Revit. (#3161)

dev/pyRevitLoader — C# Loader / Session Manager

  • Performance: Cached PyRevitConfig.Load() as a static singleton, cached Roslyn MetadataReference list, replaced per-extension AppDomain scans with pre-built HashSet lookup — loader now matches legacy load times. (#3268, #3270)
  • WndProc fix: Pre-cached .NET types restored to prevent IronPython crash in dockable pane message handling. (#3281)
  • Multi-pass loading restored: All extension assemblies load before startup scripts execute, fixing cross-extension imports. (#3188)
  • Digit-prefixed class names: Underscore prefix for names starting with digits (invalid C# identifiers). (#3188)
  • Duplicate class deduplication: HashSet guard prevents Roslyn CS0101 errors. (#3188)
  • Layout allowlist: layout field in bundle.yaml now acts as a strict allowlist, matching Python loader. (#3111)
  • F1 help parity: Template substitution, auto-discovery, relative path resolution for help URLs. (#3111)
  • Revit version compatibility: min_revit_version/max_revit_version filtering at extension and component level. (#3134)
  • Dynamo engine defaults: automate and clean default to false. (#3179)
  • SVG icon filtering: BitmapImage skips SVG, prefers raster formats. (#3179)
  • Environment variable expansion: %USERPROFILE% and similar variables resolved in extension paths. (#3179)
  • Logging level translation: pyRevit enum mapped to Python logging scale (Quiet=WARNING, Verbose=INFO, Debug=DEBUG). (#3207)
  • Rocket Mode: rocket_mode config skips icon pre-loading for faster startup. (#3121)
  • AppDomain session environment dictionary populated. (#3122)
  • Command Control Id exposed in session manager. (#3133)
  • Toolbar disappearing fix after reload when tabs are renamed. (#3183)
  • SPECIAL_CHARS sanitization restored in SanitizeClassName. (#3184)
  • Docstring and tab visibility logic enhanced. (#3190)
  • MinifyUI state desync fix on cross-model view switch. (#3196)
  • Extension install path fix (not changeable). (#3198)
  • _script/.script.py file extensions allowed. (#3131)
  • Ribbon fixes: Tab downgrade, combobox crash, keys/values return, tooltip error message. (#3202)
  • Version display fixed: pyRevit and IronPython version no longer shows “Unknown” in output window. (#3260, #3262)

dev/pyRevitLabs (TargetApps.Revit, Runtime, CommonUtils)

  • Revit 2027 addin path: Fixed all-users addin manifest path for Revit 2027+. (#3277)
  • ADC v2027 compatibility: Three-tier filesystem fallback for .NET 8 when ADC removed the compatible API DLL — Public API → Legacy API → process detection + workspace directory walking. (#3266)
  • Storage file handling: Refactored to use RootStorage class with improved stream reading and error handling (OpenMCDF v3). (#3244)
  • LoadBeta config: Canonical loadbeta key with legacy load_beta fallback; IniRemoveKey added. (#3269)
  • Extension path handling: Offline path preservation fixed; case-insensitive path deduplication on Windows. (#3259)
  • Dependency resolution: Improved .NET Core assembly resolution to prevent loading conflicts. (#3255)
  • Dependency updates: YamlDotNet v16, OpenMCDF v3, ControlZEx v7, NUnit v4, libgit2sharp 0.31.0, Microsoft.CodeAnalysis 4.11.0.

ScriptConsole / Output Window

  • Ctrl+C / Ctrl+A shortcuts: Copy selection and select-all now work in the ScriptConsole output window. (#3258)

dev/pyRevitTelemetryServer

  • Go dependency updates: go-sql-driver/mysql, go-sqlite3, lib/pq, gorilla/mux, gofrs/uuid, posener/complete v2, edwards25519.

Docs / CI / Build

  • pyrevit-hosts.json: Revit 2023.1.9, 25.4.41.14, and 2027 versions added.
  • Python version updated to 3.14 in Pipfile.
  • GitHub Actions: Workflow improvements, trusted-signing-action updates, release process enhancements.

Full PR List

PR Title Author
#3111 Layout allowlist + F1 help parity with Python loader @OnePowerUser88
#3115 Fix CPython compat @Wurschdhaud
#3116 Fix load beta tools setting + HelpUrl support @OnePowerUser88
#3119 Update translations for Create Workset For Linked Element @Denver-22
#3120 Restore non-integer support in ReNumber tool @Wurschdhaud
#3121 Add Rocket Mode configuration @jmcouffin
#3122 Populate AppDomain session environment dictionary @jmcouffin
#3123 Fix StaticResource crash in forms loader @Wurschdhaud
#3124 Improvement 3dmeasure @Wurschdhaud
#3125 Switch shiftclick to EXEC_PARAMS.config_mode @Wurschdhaud
#3126 Convert CAD Import robustness improvements @Wurschdhaud
#3127 Add Shift+Click duplicate handling to ReNumber @Wurschdhaud
#3128 Add optional elements argument to get_value_range @Wurschdhaud
#3130 Fix SectionBoxNavigator: Levels at 0 @Wurschdhaud
#3131 Allow _script, _script and .script.py extensions @sweco-beb283
#3132 Add section headers, separators, slider to settings @Wurschdhaud
#3133 Expose Command Control Id in Session Manager @sweco-beb283
#3134 Implement Revit version compatibility checks @jchristel
#3136 Keynote Manager: Fix ADC bug + New UI @tay0thman
#3139 Add element addition/deletion triggers to UpdaterListener @dnenov
#3143 Update ws4links_script.py @Denver-22
#3145 Enhance SB Navigator - store set values, doc switching @Wurschdhaud
#3146 Fix WPF Pane implementation @Wurschdhaud
#3147 Extend ifc.py - extended IFC export helper @Wurschdhaud
#3155 Warn users when view range is driven by view template @thumDer
#3161 Safe JSON serializer and content-length fix @vinnividivicci
#3162 Update pyrevit-hosts.json - add Revit 25.4.41.14 @924312
#3165 Add visually distinct color generator @Wurschdhaud
#3169 Add optional color override to Mesh.from_solid @Wurschdhaud
#3175 Fix locale-specific copied view detection @Wurschdhaud
#3176 Update Python version to 3.14 @jmcouffin
#3177 Extract _WPFMixin, bring WPFPanel to feature parity @Wurschdhaud
#3179 Fix loader regressions (Dynamo, SVG, env vars, version) @tay0thman
#3180 Update pyrevit-hosts.json - 2023.1.9 @924312
#3183 Fix toolbar disappearing after reload with renamed tabs @tay0thman
#3184 Restore legacy SPECIAL_CHARS sanitization @tay0thman
#3185 Match prop clipboard pane @Wurschdhaud
#3186 Preserve view title position when copying sheets @tay0thman
#3187 Update get_name() with worksets support @Denver-22
#3188 Fix C# loader regressions (multi-pass, digits, dupes, version) @tay0thman
#3190 Fix docstring and enhance tab visibility logic @tay0thman
#3192 Explicit update of the view template @thumDer
#3196 Fix MinifyUI state desync on cross-model view switch @tay0thman
#3197 Make use of improved lib in match clipboard pane @Wurschdhaud
#3198 Fix extension install path not changeable @tay0thman
#3200 Add Pick Elements by Parameter Value tool @Wurschdhaud
#3202 Fix tab downgrade, combobox crash, keys/values, tooltip error @Wurschdhaud
#3206 Clipboard improvements @Wurschdhaud
#3207 Fix logging level translation to Python scale @tay0thman
#3208 Add T3LabLite extension @thanhtranarch
#3240 Fix ViewRange: duplicate windows, close crash, invalid values @tay0thman
#3244 Refactor storage file handling in CommonUtils @jmcouffin
#3258 Add Ctrl+C and Ctrl+A keyboard shortcuts to ScriptConsole @tay0thman
#3259 Fix extension path offline path handling regressions @tay0thman
#3260 Fix pyRevit/IPY version showing Unknown in output window @tay0thman
#3261 Bugfixes for SectionBox Navigator @Wurschdhaud
#3262 Fix IronPython version showing Unknown in output window @tay0thman
#3265 Fix crash when processing inverted parameter filter rules @Wurschdhaud
#3266 ADC v2027 compatibility — filesystem fallback for .NET 8 @tay0thman
#3268 Optimize C# loader to match legacy load times @tay0thman
#3269 Fix LoadBeta configuration handling in PyRevitConfig @jmcouffin
#3270 Apply C# loader performance optimizations @tay0thman
#3274 Add warning for view phase not changeable in temp view mode @Wurschdhaud
#3277 Fix all-users addin manifest path for Revit 2027+ @tay0thman
#3280 Improve Match Clipboard color value pick and filter detection @Wurschdhaud
#3281 Restore WndProc pre-cached .NET types to prevent IronPython crash @tay0thman

Contributors

@vinnividivicci, @924312, @jchristel, @dnenov, @jmcouffin, @tay0thman, @Denver-22, @thumDer, @sweco-beb283, @OnePowerUser88, @Wurschdhaud, @thanhtranarch

7 Likes
3

Advertisement for Match History Clipboard 3185:

Match History Clipboard, a dockable pane that brings
Windows Clipboard History (Win+V) semantics to Revit parameters.
Just like Win+V lets you paste from a list of things you’ve previously
copied — not just the last one — this tool keeps a scrollable, searchable
history of parameter name/value pairs and lets you apply any of them to
elements at any time, in any order, without re-picking.

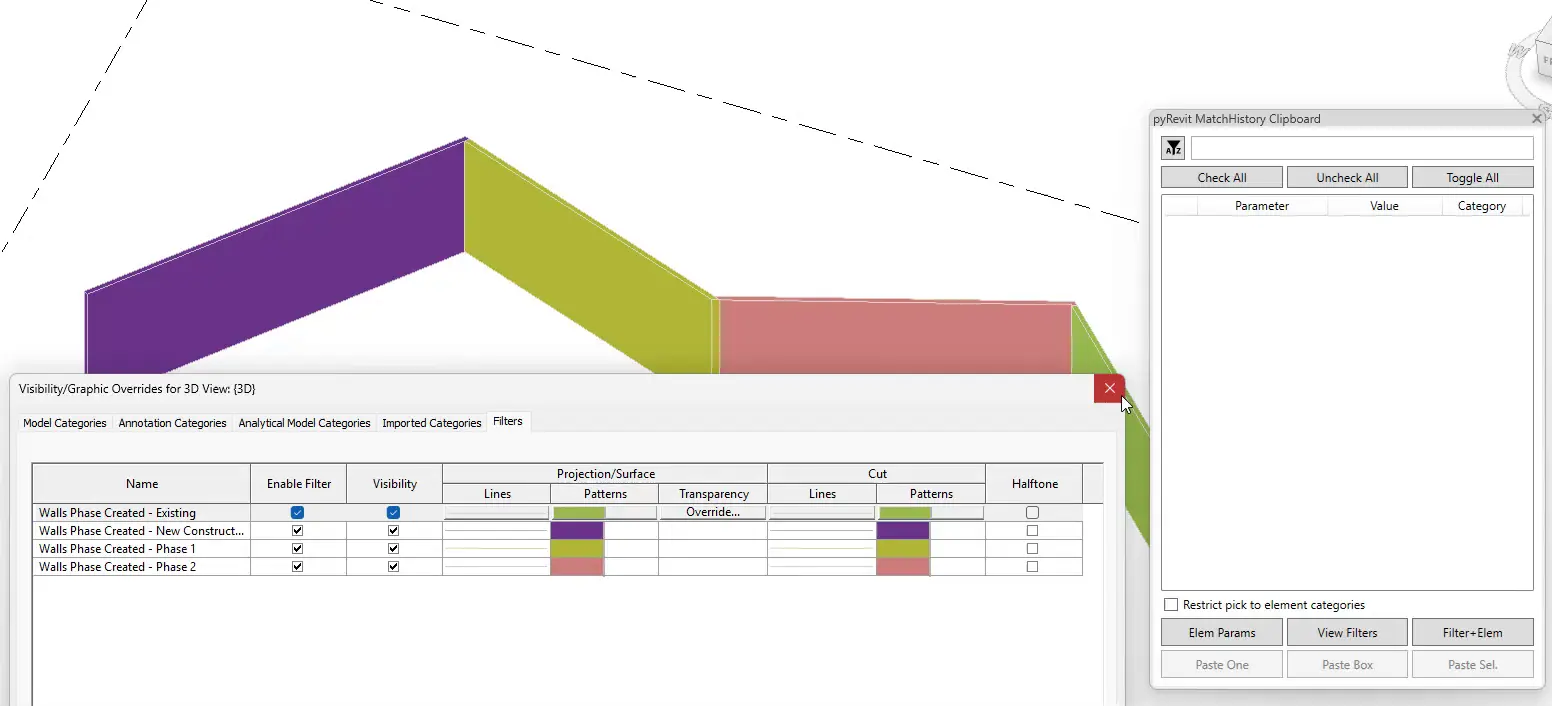

566482840-99c4f755-89ad-4753-9a4c-97c1cf17ba4a-ezgif.com-video-to-webp-converter

Why it matters

The existing Match Type Properties workflow in pyRevit is one-shot:
pick a source element, pick parameters, paint them onto targets, done.
If you need to re-apply the same values later — or mix values from
different sources — you’re back to square one.

This tool removes that friction entirely.

Feature highlights

:card_index_dividers: Persistent clipboard history

Up to 50 parameter entries are stored in the pane.
New entries are prepended at the top; the oldest fall off the bottom.
Every load operation unchecks everything first, so you always start
clean — just like a fresh Win+V paste.

:magnifying_glass_tilted_left: Search with regex support

A search bar filters the list live.
Toggle the funnel icon to switch between substring and full
regular expression matching — useful when your project has dozens of
similarly named parameters.

:artist_palette: Three load sources — think eyedropper

The three source buttons work like the colour-picker / eyedropper in
Paint, Photoshop or Revit’s own linework tool:

Button What it does
Elem Params Pick an element → choose parameters interactively
View Filters Read all equals-filter values from the active view at once
Filter + Elem Identify the dominant filter parameter, then read its value off a picked element — the “smart eyedropper”

:clipboard: Four-column list with category awareness

Each row shows checkbox · parameter name · value · category.
The category column displays the element’s category name, or “multiple”
when a single parameter spans several categories (common for filter-sourced
entries).
An optional category selection filter checkbox restricts rectangle-pick
operations to only the categories present in your checked parameters —
no more accidentally stamping values onto the wrong family type.

:pen: Three paste modes

  • Paste One — repeated single-element pick loop
  • Paste Box — repeated rectangle selection loop (respects category filter)
  • Paste Sel. — one-shot apply to the current Revit selection

All three paste modes apply type parameters before instance parameters,
matching the behaviour of the existing Match Type Properties tool.

Companion tool — “Color Pick” shortcut

Because the Filter + Elem eyedropper pattern turned out to be
overwhelmingly the most common workflow in practice, a separate
lightweight tool was extracted that does exactly one thing:
detect the dominant filter parameter → pick an element → paste immediately.
No pane, no history — just assign it a keyboard shortcut and stamp away.
The heavy lifting is shared code; no duplication.
575565735-a3f8fbcc-2123-4e3e-afd7-b7f0ca95b02d-ezgif.com-video-to-webp-converter

4 Likes
5

Thank you for the terrific tools. I would like to submit a request that you review the button images for Revit’s dark UI theme as they’re practically invisible. Thanks again and keep up the good work.

6

Please file an issue on GitHub with screen capture illustrating the issue @gbiallas

7

I have been wondering… why is it that you show “(preferred)” with the pyRevit 6.4.0 EXE and not the pyRevit 6.4.0 Admin EXE installer? What is the difference? Admin installs system wide (all users) and the non-Admin installs at user level, correct? Are there other differences? Just want to make sure. Thanks!!

8

@RicWeber no your right. Only main diff.
A few broken bits in the admin one.

9

Wait, are you saying that the Admin version has some bugs that the user one does not?

10

@RicWeber bug, no, but required improvements definitely. I know some areas are clumsy and make the admin version harder to manage from an IT perspective. (Look at issues in the repo, opened and closed ones) This is an area that needs some love, both on the installer and the cli side since both are tightly linked. Personally I am more inclined to work on general performance of Pyrevit, but improving admin installer is definitely a project in itself

11

I really like the overall UI update to the Keynote Manager, however I am wondering if in a future release when a keynote is added modified or revised it won’t “reset” the list of notes. Everything that I collapse down to a specific section re-open every single time I adjust a note. From a work-flow perspective that would be a great quality of life refinement.

12

@tayOthman your puppy :index_pointing_up:

13

@Jean-Marc That puppy is growing in complexity, I keep feeding it more External event handlers.

@JohnRP I think I Introduced this misfortune when I added the refresh functionality to the keynotes list. let me take a look at that one and I will fix it this weekend.

1 Like
15

Are you okay with this little flicker? It is getting really complicated.

Beta_Loader

16

That looks much better, currently my work around is to just have a key search that keeps the list sorted but this would be much improved for our teams use.

Thanks for looking into this so quickly.
