Proposal: Decouple UI Layout from Folder Structure

[ccrosley (Chris Crosley)]

Proposal: Decouple UI Layout from Folder Structure

Preface - I’m a BIM manager at a ~25-30 person firm and have also been developing my on pyRevit tools for a bit now, but haven’t been very active in the community (hoping to change that). One of the most common bits of feedback that I get from folks when I show them pyRevit is “wow, this is a lot”. For power users, the 50+ tools in pyRevit Core may be useful, but for most users - especially at first - it’s overwhelming. Even for power users, there may be tools that they will simply never need which are taking up space on the UI.

Creating custom UI layouts in pyRevit today requires forking the repo and modifying folder structures and bundle files nested 4-5 levels deep. It would be great to be able to abstract the two like many modern web development tools and have a folder of Tools and a separate layout system that organizes them.

I’m willing to try my hand building this and submitting a PR to get things started, but wanted to post here first to get some feedback on the idea. Please let me know what you all think.

Goals

• Reduce folder structure complexity

• Eliminate the direct connection between folder hierarchy and UI layout

• Allow admins (and optionally users) to customize layouts without forking

• Enable hiding tools and potentially combining tools from multiple repos

• Maintain full backward compatibility with existing extensions

---

Current Structure

Extensions require a 4-level folder hierarchy (5! for stacks and button groups) that both stores tools and defines UI:

MyExtension.extension/
  MyTab.tab/
    MyPanel.panel/
      MyButton.pushbutton/
        bundle.yaml
        script.py

The folder name suffix determines the UI element type, and folder nesting determines the UI hierarchy.

---

Proposed Structure

Decouple layout from tools by introducing layout YAML files at the extension root and a flat tools/ directory.

MyExtension.extension/
  extension_layout.yaml       # declares tab/panel structure, references panel files
  MyPanel.panel.yaml          # panel-level tool layout (at extension root)
  OtherPanel.panel.yaml
  tools/                      # flat tool storage, subfolders for organization only
    MyButton.pushbutton/
      bundle.yaml
      script.py
    Utilities/                # plain subfolder for grouping (no postfix = ignored)
      AnotherTool.pushbutton/
        bundle.yaml
        script.py

Extension Layout File (extension_layout.yaml)

Declares the full tab and panel structure. Panel layouts can be inlined or split into separate files for large extensions.

extension:
  name: "My Extension"
  tabs:
    - name: "My Tab"
      panels:
        - name: "My Panel"
          layout_file: "MyPanel.panel.yaml"
        - name: "Small Panel"
          layout:                         # inline for simple panels
            - MyButton
            - AnotherTool

Panel Layout File (MyPanel.panel.yaml)

layout:
  - MyButton
  - AnotherTool
  - Spy                 # references Spy.pulldown (self-contained with children)
  - ">>>>>"             # existing slideout separator still supported
  - UtilityTool

Tool Bundle (bundle.yaml)

One new optional field — name — used for layout reference. All other fields unchanged.

name: "MyButton"          # optional: used for layout lookup; derived from folder name if absent
title: "My Button"
tooltip: "Does something useful"
context: zero-doc
author: "Author Name"

If name is absent, it is derived from the folder name by stripping the postfix (e.g. My Button.pushbutton → "My Button").

---

Eliminated as Structural Folders (moved to YAML)

Postfix	Replacement
.tab	Declared in extension_layout.yaml
.panel	Declared in extension_layout.yaml or .panel.yaml file
.stack	Expressed as a grouping directive within a panel layout

---

Tool Discovery

When extension_layout.yaml is present, pyRevit uses layout-based discovery:

1. Crawl tools/ recursively

2. Skip plain subfolders (no recognized postfix) — these are organizational only

3. On finding a container tool (.pulldown, .splitbutton, .splitpushbutton):

   • Index it by name field or derived folder name

   • Crawl its children; those children belong to the container, not the flat index

4. On finding a leaf tool — index it and stop recursing

5. Build a name → component map used to resolve layout references

Tools in tools/ that are not referenced by any layout file are silently ignored (or optionally logged as a warning).

---

Backward Compatibility

When extension_layout.yaml is absent, pyRevit falls back to the existing folder-hierarchy discovery mode unchanged. Existing extensions require no modification.

This allows incremental adoption: a single extension can migrate tool-by-tool, moving tools from .tab subfolders into tools/ as desired, while keeping extension_layout.yaml as the authoritative layout declaration.

---

Required Changes to pyrevitlib

pyrevitlib/pyrevit/extensions/genericcomps.py

• Add name field parsing in _read_bundle_metadata()

• Add folder-name derivation fallback when name is absent

pyrevitlib/pyrevit/extensions/parser.py

• Add parse_tools_dir(): recursive crawler for tools/, builds name → component index

• Add parse_layout_file(): reads extension_layout.yaml and .panel.yaml files

• Modify _parse_for_components() to dispatch to new layout-based path when layout file is detected

pyrevitlib/pyrevit/extensions/components.py

• Update Extension._update_from_directory() to detect extension_layout.yaml and store layout config

• Update Extension._calculate_extension_dir_hash() to include tools/ and layout files

pyrevitlib/pyrevit/extensions/extensionmgr.py

• No structural changes required; the parser changes are transparent to this layer

pyrevitlib/pyrevit/loader/uimaker.py

• No changes required; UI creation walks the same component tree regardless of how it was built

[Jean-Marc (Jean-Marc Couffin)]

Pretty sure it will get @sanzoghenzo to smile, and me as well.
This is a good idea.
I started working on this approach making this small POC with builder.pyrevitlabs.io and this is in the plan. Let me put a more thorough plan together and discuss that.

I agree this is overwhelming for newcomer and a configurator and a distribution mean would be ideal.

[ccrosley (Chris Crosley)]

Adding WebView2 support was going to be my second proposal. lol. I think the configurator UI probably needs to live within the plugin. I love the idea of a WYSIWYG editor but it’s going to be a pain (impossible?) with a WFP form. I was thinking just a two column layout with a list of available tools and a tree structure of the layout. Similar to the UI for adding parameters to schedules.

I’m going to try and work on this some this weekend and will post screenshots if I get something working

[ccrosley (Chris Crosley)]

Some progress here (thanks to Claude): GitHub - ChrisCrosley/pyRevit-fork at feature/decouple-layout · GitHub

The heavy lifting in the pyrevit loader is working. Still needs lots of work but should be functional.

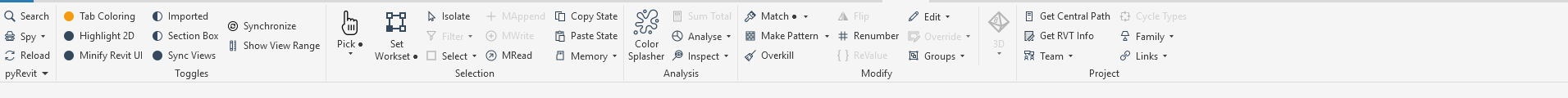

Original layout

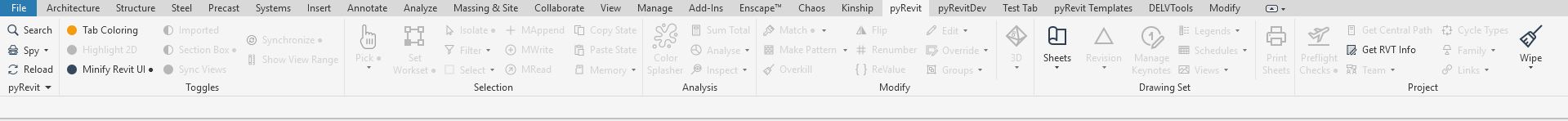

New Generated Layout (should be identical!)

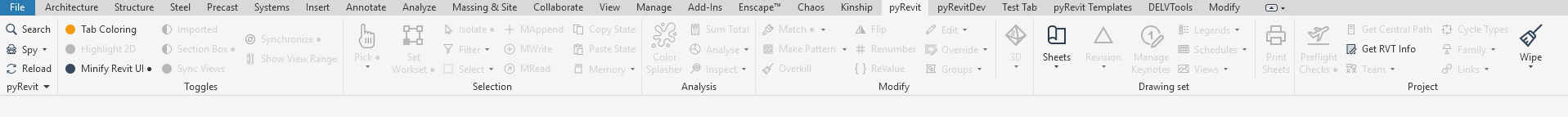

Custom user layout:

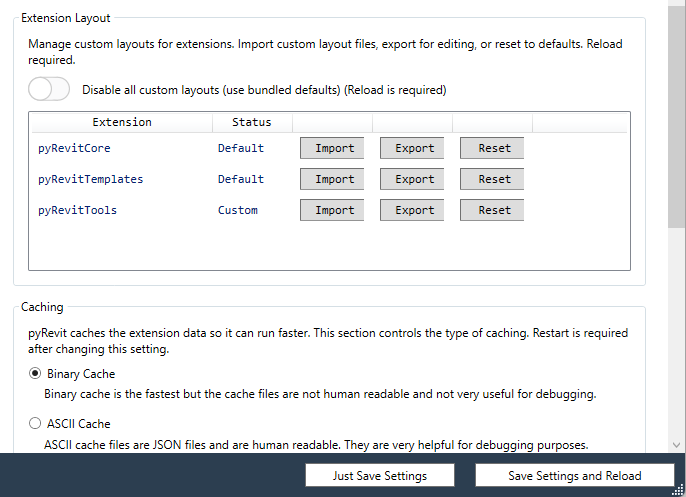

Updates Settings dialog to import/export/reset layouts:

Added buttons to dev tools to help with migrations

[ccrosley (Chris Crosley)]

Using the template extension as an example and for documentation

pyRevit-fork/extensions/pyRevitTemplates.extension at feature/decouple-layout ·...

[ccrosley (Chris Crosley)]

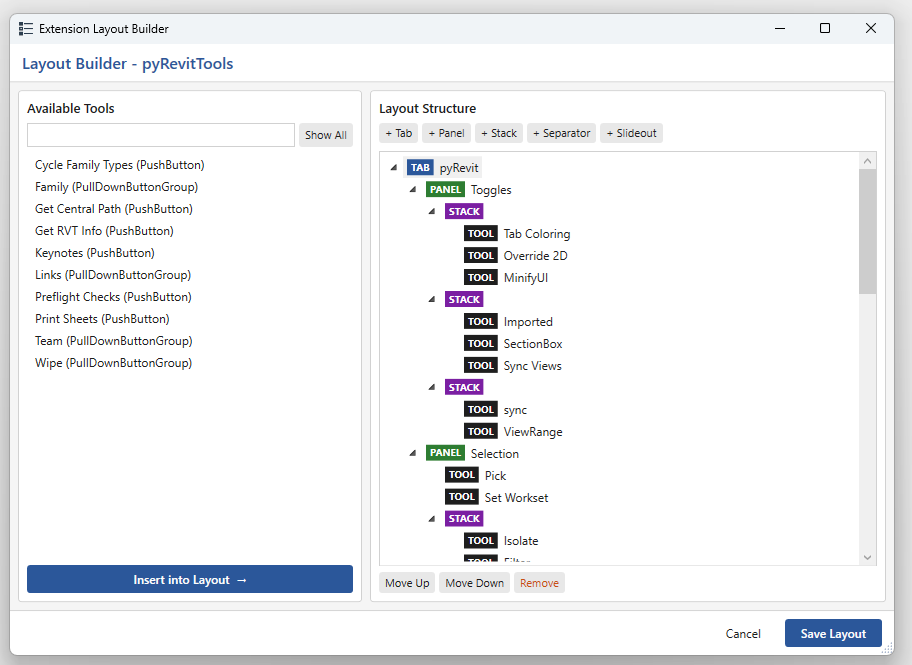

First pass at a Layout Builder using a tree structured list

[ccrosley (Chris Crosley)]

Pull Request here: Feature/decouple layout by ChrisCrosley · Pull Request #3380 · pyrevitlabs/pyRevit · GitHub

Open to feedback and input!
