I’m please at where this is headed. Having moved back to medical work, we get a lot of large questionable CAD files.. But need Revit. I’ve used EvolveLAB Helix a few times for conversion, but it was SLOW. Some plans were overnight runs. (I think I know why now.)
I whacked together a basic app to take the wall layers and make walls. It worked ok. But stepped back and took a look at what ChatGPT spit out. Processing a checking endpoints and lots of math to find candidate walls.
Just look at the lines bounding box and make it bigger. Fast. Like 100x faster.

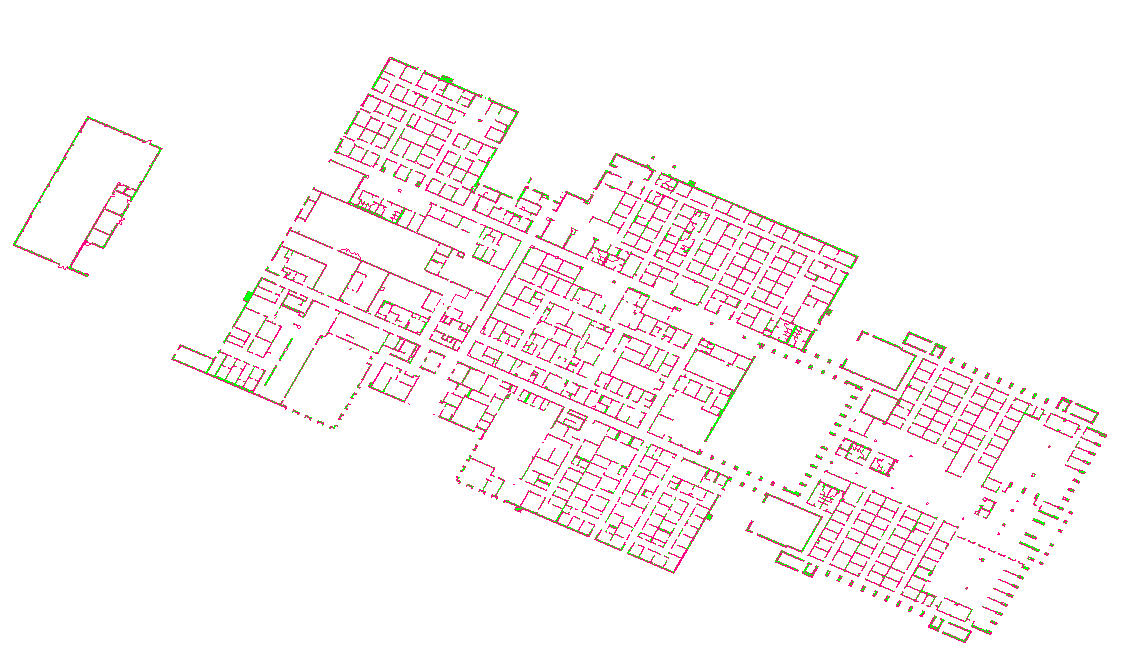

So still have a bit more work to do but should be able to draw big floor plans zoom-zoom soon.
(Thanks for the Overkill…..)

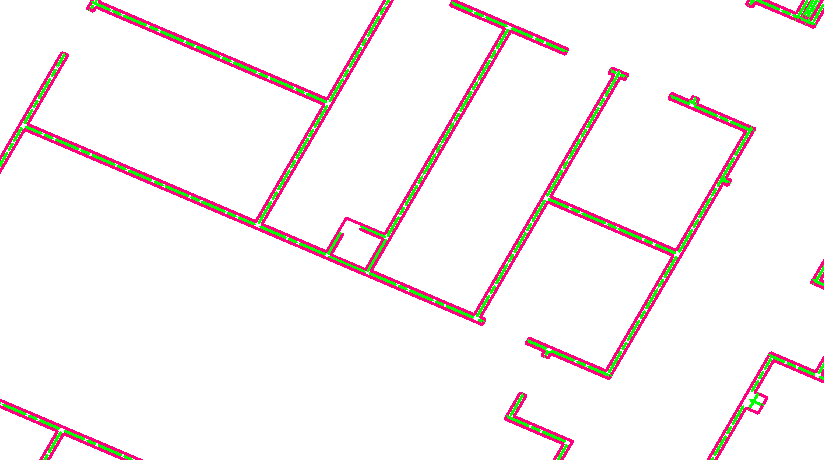

The below is running on just model lines from the CAD files to get the concept down.
# -*- coding: utf-8 -*-
__title__ = "Trace Center (Offset + Overkill)"
__author__ = "OpenAI"
# pylint: disable=E0401,C0103
import math
from collections import namedtuple
from pyrevit.framework import List
from pyrevit import revit, DB, forms, script
from pyrevit.compat import get_elementid_value_func
doc = revit.doc
uidoc = revit.uidoc
active_view = doc.ActiveView
output = script.get_output()
logger = script.get_logger()
MAX_OFFSET = 1.5 # 1'-6" in internal units (feet)
ANG_TOL = 1e-6
DIST_TOL = 1e-6
LEN_TOL = 1e-6
# overkill configs
POINT_RESOLUTION = '{:.4f}'
DIRECTION_RESOLUTION = '{:.2f}'
OFFSET_RESOLUTION = '{:.4f}'
# -----------------------------------------------------------------------------
# Pairing helpers
# -----------------------------------------------------------------------------
def is_line_curve(curve):
return isinstance(curve, DB.Line)
def normalize(v):
if v is None:
return None
if v.GetLength() < 1e-12:
return None
return v.Normalize()
def are_parallel(v1, v2, tol=ANG_TOL):
if v1 is None or v2 is None:
return False
return v1.CrossProduct(v2).GetLength() <= tol
def get_curve_bbox_xyz(curve):
p0 = curve.GetEndPoint(0)
p1 = curve.GetEndPoint(1)
min_pt = DB.XYZ(
min(p0.X, p1.X),
min(p0.Y, p1.Y),
min(p0.Z, p1.Z)
)
max_pt = DB.XYZ(
max(p0.X, p1.X),
max(p0.Y, p1.Y),
max(p0.Z, p1.Z)
)
return min_pt, max_pt
def expand_bbox(min_pt, max_pt, offset):
return (
DB.XYZ(min_pt.X - offset, min_pt.Y - offset, min_pt.Z - offset),
DB.XYZ(max_pt.X + offset, max_pt.Y + offset, max_pt.Z + offset)
)
def bboxes_overlap(min_a, max_a, min_b, max_b, tol=1e-9):
return (
min_a.X <= max_b.X + tol and max_a.X >= min_b.X - tol and
min_a.Y <= max_b.Y + tol and max_a.Y >= min_b.Y - tol and
min_a.Z <= max_b.Z + tol and max_a.Z >= min_b.Z - tol
)
def get_active_view_sketch_plane(document, view):
sp = view.SketchPlane
if sp:
return sp
plane = DB.Plane.CreateByNormalAndOrigin(view.ViewDirection, view.Origin)
t = DB.Transaction(document, "Create Active View Sketch Plane")
t.Start()
sp = DB.SketchPlane.Create(document, plane)
view.SketchPlane = sp
t.Commit()
return sp
class LineStyleOption(forms.TemplateListItem):
@property
def name(self):
gs = self.item
cat = gs.GraphicsStyleCategory
return cat.Name if cat else "<No Category>"
def get_model_line_styles(document):
styles = []
lines_cat = document.Settings.Categories.get_Item(DB.BuiltInCategory.OST_Lines)
if not lines_cat:
return styles
for subcat in lines_cat.SubCategories:
try:
gs = subcat.GetGraphicsStyle(DB.GraphicsStyleType.Projection)
if gs:
styles.append(gs)
except:
pass
return sorted(styles, key=lambda x: x.GraphicsStyleCategory.Name)
def collect_model_lines_in_active_view(document, view):
fec = DB.FilteredElementCollector(document, view.Id).OfClass(DB.CurveElement)
model_lines = []
for ce in fec:
try:
if not isinstance(ce, DB.ModelCurve):
continue
curve = ce.GeometryCurve
if not curve:
continue
if not is_line_curve(curve):
continue
if curve.Length <= LEN_TOL:
continue
model_lines.append(ce)
except Exception as ex:
output.print_md(
"- Skipped curve element {} because geometry could not be read: `{}`".format(
ce.Id.IntegerValue, ex
)
)
return model_lines
def line_data(model_curve):
curve = model_curve.GeometryCurve
p0 = curve.GetEndPoint(0)
p1 = curve.GetEndPoint(1)
direction = normalize(p1 - p0)
bb_min, bb_max = get_curve_bbox_xyz(curve)
midpoint = (p0 + p1) * 0.5
return {
"elem": model_curve,
"curve": curve,
"p0": p0,
"p1": p1,
"mid": midpoint,
"dir": direction,
"length": curve.Length,
"id": model_curve.Id.IntegerValue,
"bb_min": bb_min,
"bb_max": bb_max,
}
def project_point_to_segment(seg_curve, test_point, tol=1e-6):
r = seg_curve.Project(test_point)
if r is None:
return (False, None, None)
proj = r.XYZPoint
p0 = seg_curve.GetEndPoint(0)
p1 = seg_curve.GetEndPoint(1)
seg_len = p0.DistanceTo(p1)
if seg_len <= tol:
return (False, None, None)
on_seg = abs((proj.DistanceTo(p0) + proj.DistanceTo(p1)) - seg_len) <= tol
return (on_seg, proj, test_point.DistanceTo(proj))
def build_center_line_from_pair(data_a, data_b, max_offset):
"""
For each valid pair:
- choose the shorter line
- project the shorter line midpoint to the other line
- offset-transform the shorter line by half that vector
"""
if not are_parallel(data_a["dir"], data_b["dir"]):
return None
if data_a["length"] <= data_b["length"]:
short_data = data_a
other_data = data_b
else:
short_data = data_b
other_data = data_a
ok, proj_mid, dist = project_point_to_segment(other_data["curve"], short_data["mid"], DIST_TOL)
if not ok:
return None
if dist is None or dist <= DIST_TOL or dist > max_offset:
return None
move_vec = proj_mid - short_data["mid"]
if abs(move_vec.DotProduct(short_data["dir"])) > 1e-5:
return None
half_vec = move_vec * 0.5
c0 = short_data["p0"] + half_vec
c1 = short_data["p1"] + half_vec
if c0.DistanceTo(c1) <= LEN_TOL:
return None
return DB.Line.CreateBound(c0, c1)
# -----------------------------------------------------------------------------
# Overkill helpers adapted from your script
# -----------------------------------------------------------------------------
CurvePoint = namedtuple('CurvePoint', ['x', 'y', 'cid'])
class LinearCurveGroup(object):
supported_geoms = (DB.Line,)
def __init__(self, curve, include_style=False):
self.points = set()
p1 = curve.GeometryCurve.GetEndPoint(0)
p2 = curve.GeometryCurve.GetEndPoint(1)
self.dir_x, self.dir_y = self.get_direction(curve)
self.dir_offset = self.get_offset(p1, p2)
self.weight = self.get_weight(curve) if include_style else None
self.cgroup_id = (self.dir_x, self.dir_y, self.dir_offset, self.weight)
get_elementid_value = get_elementid_value_func()
self.dir_cid = get_elementid_value(curve.Id)
self.add_points([
self.get_point(p1.X, p1.Y),
self.get_point(p2.X, p2.Y),
])
@staticmethod
def shortest_dist(x1, y1, x2, y2, x0, y0):
return (
abs(x0 * (y2 - y1) - y0 * (x2 - x1) + x2 * y1 - y2 * x1) /
math.sqrt((y2 - y1) ** 2 + (x2 - x1) ** 2)
)
@staticmethod
def is_inside(min_cpoint, max_cpoint, cpoint):
x_range = max_cpoint.x - min_cpoint.x
y_range = max_cpoint.y - min_cpoint.y
if x_range == 0.0:
return min_cpoint.y <= cpoint.y <= max_cpoint.y
elif y_range == 0.0:
return min_cpoint.x <= cpoint.x <= max_cpoint.x
else:
xr = LinearCurveGroup.get_float((cpoint.x - min_cpoint.x) / x_range)
yr = LinearCurveGroup.get_float((cpoint.y - min_cpoint.y) / y_range)
return xr == yr
@staticmethod
def get_style_weight(curve):
graphic_style_cat = curve.LineStyle.GraphicsStyleCategory
graphic_style_type = curve.LineStyle.GraphicsStyleType
return graphic_style_cat.GetLineWeight(graphic_style_type)
@staticmethod
def get_float(float_value, res=POINT_RESOLUTION):
return float(res.format(float_value))
@property
def max_point(self):
return max(self.points, key=lambda p: p.x + p.y)
@property
def min_point(self):
return min(self.points, key=lambda p: p.x + p.y)
def get_point(self, x, y):
return CurvePoint(
x=LinearCurveGroup.get_float(x, res=POINT_RESOLUTION),
y=LinearCurveGroup.get_float(y, res=POINT_RESOLUTION),
cid=self.dir_cid
)
def get_direction(self, curve):
dir_x = curve.GeometryCurve.Direction.X
dir_y = curve.GeometryCurve.Direction.Y
if (dir_x <= 0.0 and dir_y <= 0.0) or (dir_x > 0.0 and dir_y < 0.0):
dir_x, dir_y = -dir_x, -dir_y
dir_x = 0.0 if dir_x == 0.0 else dir_x
dir_y = 0.0 if dir_y == 0.0 else dir_y
return (
LinearCurveGroup.get_float(dir_x, res=DIRECTION_RESOLUTION),
LinearCurveGroup.get_float(dir_y, res=DIRECTION_RESOLUTION)
)
def get_offset(self, p1, p2):
dir_offset = LinearCurveGroup.shortest_dist(
LinearCurveGroup.get_float(p1.X, res=POINT_RESOLUTION),
LinearCurveGroup.get_float(p1.Y, res=POINT_RESOLUTION),
LinearCurveGroup.get_float(p2.X, res=POINT_RESOLUTION),
LinearCurveGroup.get_float(p2.Y, res=POINT_RESOLUTION),
self.dir_x,
self.dir_y
)
return LinearCurveGroup.get_float(dir_offset, res=OFFSET_RESOLUTION)
def get_weight(self, curve):
return LinearCurveGroup.get_style_weight(curve)
def add_points(self, curve_points):
for curve_point in curve_points:
if isinstance(curve_point, CurvePoint):
self.points.add(curve_point)
def merge(self, cgroup):
if isinstance(cgroup, LinearCurveGroup):
for cgroup_point in cgroup.points:
if LinearCurveGroup.is_inside(self.min_point, self.max_point, cgroup_point):
self.add_points(cgroup.points)
return True
return False
def overkill(self, document=None):
bounded_curve_ids = set()
if document and len(self.points) > 2:
root_curve = document.GetElement(DB.ElementId(self.dir_cid))
min_dpoint = self.min_point
max_dpoint = self.max_point
curve_z = root_curve.GeometryCurve.GetEndPoint(0).Z
min_point = DB.XYZ(min_dpoint.x, min_dpoint.y, curve_z)
max_point = DB.XYZ(max_dpoint.x, max_dpoint.y, curve_z)
reset_dir_curve = False
try:
geom_curve = DB.Line.CreateBound(min_point, max_point)
root_curve.SetGeometryCurve(geom_curve, overrideJoins=True)
reset_dir_curve = True
except Exception as set_ex:
logger.debug('Failed re-setting root curve | %s', set_ex)
if reset_dir_curve:
bounded_curve_ids = {x.cid for x in self.points if x.cid != self.dir_cid}
if bounded_curve_ids:
bounded_curve_ids = [DB.ElementId(x) for x in bounded_curve_ids]
document.Delete(List[DB.ElementId](bounded_curve_ids))
return len(bounded_curve_ids)
class CurveGroupCollection(object):
def __init__(self, include_style=False):
self.curve_groups = []
self._include_style = include_style
def __iter__(self):
return iter(self.curve_groups)
def merge(self, cgroup):
matching_cgroups = [x for x in self.curve_groups if x.cgroup_id == cgroup.cgroup_id]
if matching_cgroups:
first_matching = matching_cgroups[0]
matching_cgroups.remove(first_matching)
if matching_cgroups:
for matching_cgroup in matching_cgroups:
cgroup.merge(matching_cgroup)
self.curve_groups.remove(matching_cgroup)
return first_matching.merge(cgroup)
def extend(self, curve_element):
if isinstance(curve_element.GeometryCurve, LinearCurveGroup.supported_geoms):
cgroup = LinearCurveGroup(curve_element, include_style=self._include_style)
if not self.merge(cgroup):
self.curve_groups.append(cgroup)
return True
def overkill_created_curves(curve_elements, include_style=True):
cgroup_collection = CurveGroupCollection(include_style=include_style)
for curve_element in curve_elements:
cgroup_collection.extend(curve_element)
del_count = 0
for cgroup in cgroup_collection:
del_count += cgroup.overkill(document=doc)
return del_count
# -----------------------------------------------------------------------------
# Main
# -----------------------------------------------------------------------------
output.print_md("### Trace Center")
output.print_md("- Active view: `{}`".format(active_view.Name))
output.print_md("- View type: `{}`".format(active_view.ViewType))
styles = get_model_line_styles(doc)
if not styles:
forms.alert("No line styles were found under Lines subcategories.", exitscript=True)
selected_style = forms.SelectFromList.show(
[LineStyleOption(x) for x in styles],
title="Select Model Line Style",
button_name="Use Selected Style",
multiselect=False
)
if not selected_style:
script.exit()
sketch_plane = get_active_view_sketch_plane(doc, active_view)
if not sketch_plane:
forms.alert("Could not obtain or create a sketch plane for the active view.", exitscript=True)
model_lines = collect_model_lines_in_active_view(doc, active_view)
if len(model_lines) < 2:
forms.alert("Need at least two straight model lines in the active view.", exitscript=True)
data = [line_data(x) for x in model_lines]
output.print_md("- Straight model lines found: `{}`".format(len(data)))
total_pairs = (len(data) * (len(data) - 1)) // 2
output.print_md("- Total possible pairs: `{}`".format(total_pairs))
candidate_lines = []
broad_phase_hits = 0
exact_checks = 0
valid_pair_count = 0
log_step = 250
for i in range(len(data)):
data_i = data[i]
exp_min_i, exp_max_i = expand_bbox(data_i["bb_min"], data_i["bb_max"], MAX_OFFSET)
for j in range(i + 1, len(data)):
data_j = data[j]
if not bboxes_overlap(exp_min_i, exp_max_i, data_j["bb_min"], data_j["bb_max"]):
continue
broad_phase_hits += 1
if not are_parallel(data_i["dir"], data_j["dir"]):
continue
exact_checks += 1
if exact_checks % log_step == 0:
output.print_md("- Exact checks after bbox prefilter: `{}`".format(exact_checks))
try:
center_line = build_center_line_from_pair(data_i, data_j, MAX_OFFSET)
if center_line:
valid_pair_count += 1
candidate_lines.append(center_line)
except Exception as ex:
output.print_md(
"- Failed pair {} / {}: `{}`".format(data_i["id"], data_j["id"], ex)
)
output.print_md("- BBox candidate hits: `{}`".format(broad_phase_hits))
output.print_md("- Exact geometry checks: `{}`".format(exact_checks))
output.print_md("- Raw candidate center lines: `{}`".format(len(candidate_lines)))
output.print_md("- Valid source pairs found: `{}`".format(valid_pair_count))
if not candidate_lines:
forms.alert("No valid parallel line pairs were found within 1'-6\".", exitscript=True)
created_ids = []
failed = []
create_log_step = 100
with revit.Transaction("Create Centered Model Lines From Parallel Pairs", swallow_errors=True):
for idx, line in enumerate(candidate_lines, 1):
if idx % create_log_step == 0 or idx == len(candidate_lines):
output.print_md("- Creation progress: `{}` / `{}`".format(idx, len(candidate_lines)))
try:
new_mc = doc.Create.NewModelCurve(line, sketch_plane)
if isinstance(new_mc, DB.CurveElement):
new_mc.LineStyle = selected_style
created_ids.append(new_mc.Id)
except Exception as ex:
failed.append((idx, str(ex)))
created_curves = [doc.GetElement(x) for x in created_ids if doc.GetElement(x) is not None]
deleted_count = 0
if created_curves:
with revit.Transaction("Overkill Center Lines", swallow_errors=True):
deleted_count = overkill_created_curves(created_curves, include_style=True)
final_created_count = len(created_ids) - deleted_count
msg = []
msg.append("Processed {} model lines in active view.".format(len(model_lines)))
msg.append("Total possible pairs: {}.".format(total_pairs))
msg.append("BBox candidate hits: {}.".format(broad_phase_hits))
msg.append("Exact checks after prefilter: {}.".format(exact_checks))
msg.append("Valid source pairs found: {}.".format(valid_pair_count))
msg.append("Raw candidate center lines created: {}.".format(len(created_ids)))
msg.append("Overkill removed {} overlapping line(s).".format(deleted_count))
msg.append("Final remaining center lines: {}.".format(final_created_count))
msg.append("Failed {} line(s).".format(len(failed)))
forms.alert("\n".join(msg), title="Complete")
if failed:
output.print_md("### Failed created lines")
for idx, err in failed:
output.print_md("- Raw candidate line {} failed: `{}`".format(idx, err))
